Setting Up a Service Proxy with Traefik (en)

This document is a restructured adaptation of content from https://doc.traefik.io/traefik/.

As of March 2023, version v2.9.8 is the latest release, and this document is based on that version.

What is Traefik?

Traefik is an Edge Router that simplifies service publication within your infrastructure.

An Edge Router is a specialized router located at the boundary between external and internal networks, enabling connectivity between the two.
It intercepts all incoming traffic and routes it to the appropriate service based on predefined rules.

Scope of this Document

Traefik Proxy offers a much broader range of features than you might expect.
It provides various means and methods to connect services.
Traefik supports HTTP and layer-4 protocols such as TCP and UDP.

However, this document will focus on connecting HTTP and HTTPS services using Docker and file-based configuration methods.

Concepts

As mentioned earlier, Traefik Proxy is an Edge Router.
It serves as the gateway of the server, intercepting all incoming requests and routing them to appropriate services based on rules such as path, host, or headers.

Services can be identified using various methods, including automatic detection through files or Docker. These methods are referred to as providers.

Traefik not only routes requests to services based on rules but also allows request control and modification before forwarding them to the service via middleware.

Understanding Traefik Locally

In the final part of this document, we will configure Traefik to connect to a server (e.g., Raspberry Pi) and Cloudflare.
Before deploying to the server, we will perform a simple experiment on a local machine to demonstrate how Traefik works.

The following instructions assume Docker is installed on your laptop.

Step 1: Initializing Traefik Proxy

Create a folder named traefik-test and add a docker-compose.yaml file in that folder.

version: "3"

services:
  traefik-proxy:
    # Official Traefik v2 Docker image
    image: traefik:v2.9
    # Enable the web UI and instruct Traefik to listen to Docker events
    command: --api.insecure=true --providers.docker
    ports:
      # Port for incoming HTTP requests
      - "80:80"
      # Port for Traefik's Web UI (enabled by the --api.insecure=true option)
      - "8080:8080"
    volumes:
      # Allow Traefik to receive Docker events
      - /var/run/docker.sock:/var/run/docker.sock

Now, run the following command to start Traefik:

docker-compose up -d traefik-proxy

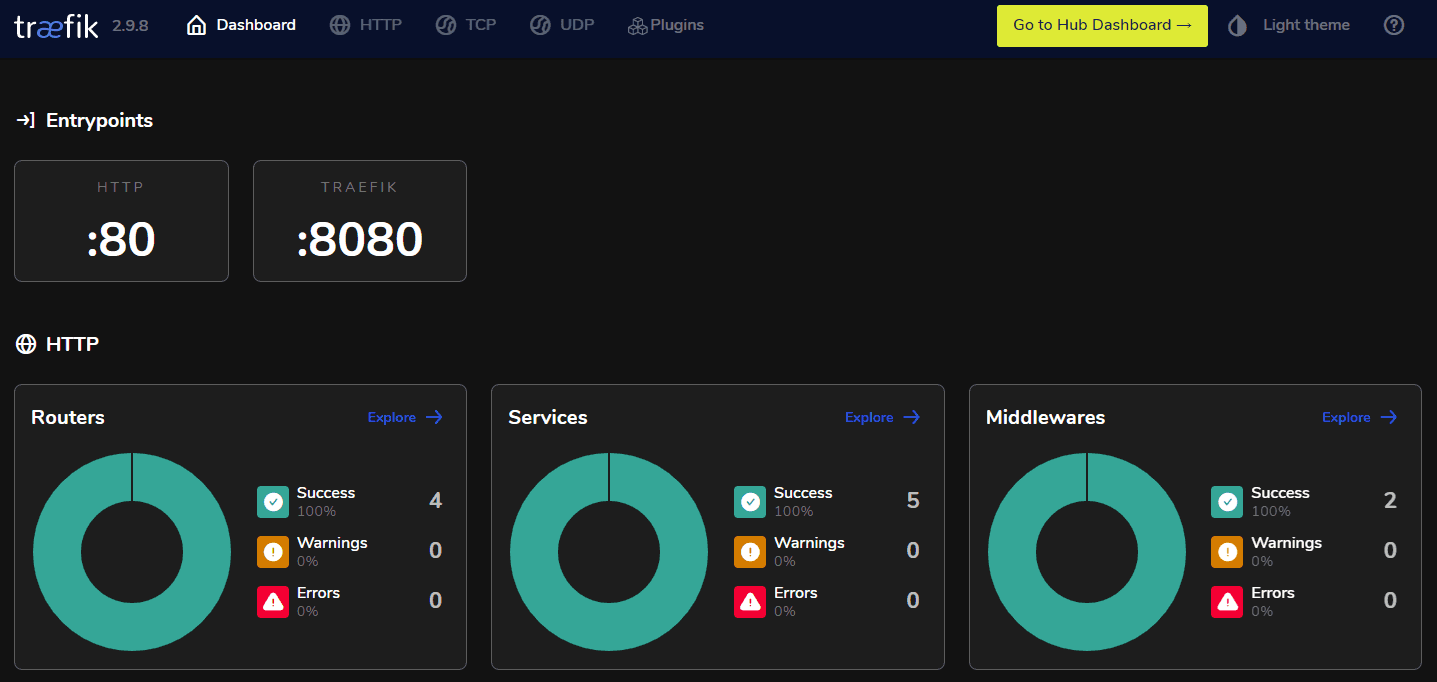

Open your browser and navigate to http://localhost:8080/dashboard. You will see the Traefik Web UI.

At this point, only the Traefik service is running, with no other services configured.

Step 2: Adding a Service

Modify the docker-compose.yaml file as follows:

version: "3"

services:
  traefik-proxy:
    image: traefik:v2.9
    command: --api.insecure=true --providers.docker
    ports:
      - "80:80"
      - "8080:8080"
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock

  iplogger:
    # Expose a container showing incoming IP addresses (service added)
    image: minpeter/iplogger
    labels:
      - "traefik.http.routers.iplogger.rule=Host(`ip.docker.localhost`, `ip.traefik.me`)"

Start the iplogger service with the following command:

docker-compose up -d iplogger

Now, let's use Traefik to access the iplogger service:

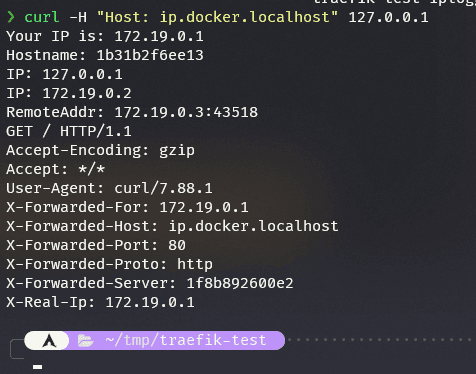

curl -H Host:ip.docker.localhost 127.0.0.1

This command sends an HTTP request to localhost:80 with a Host header set to ip.docker.localhost. The response should look something like this:

Although port 80 is bound to the Traefik container, the request is routed to the iplogger container based on the Host header and responded to successfully.

Bonus: Understanding traefik.me

To clarify the concept of the Host header, consider this explanation:

In the earlier example, we manually modified the Host header, which is not practical for end users. In a real-world scenario, DNS configuration would handle this, enabling users to access services via domain names, which automatically sets the Host header.

A useful practice tool for this is the traefik.me domain. The traefik.me domain always resolves to 127.0.0.1.

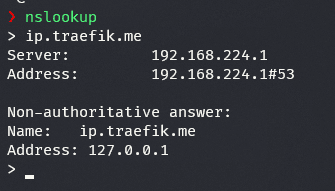

For example, ip.traefik.me also resolves to 127.0.0.1. You can use this to send requests like the following:

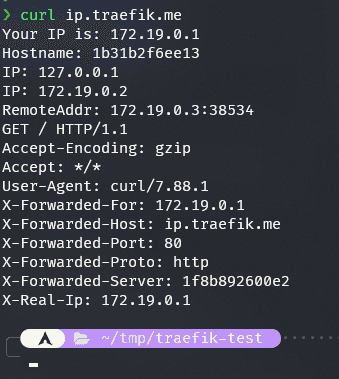

curl ip.traefik.me

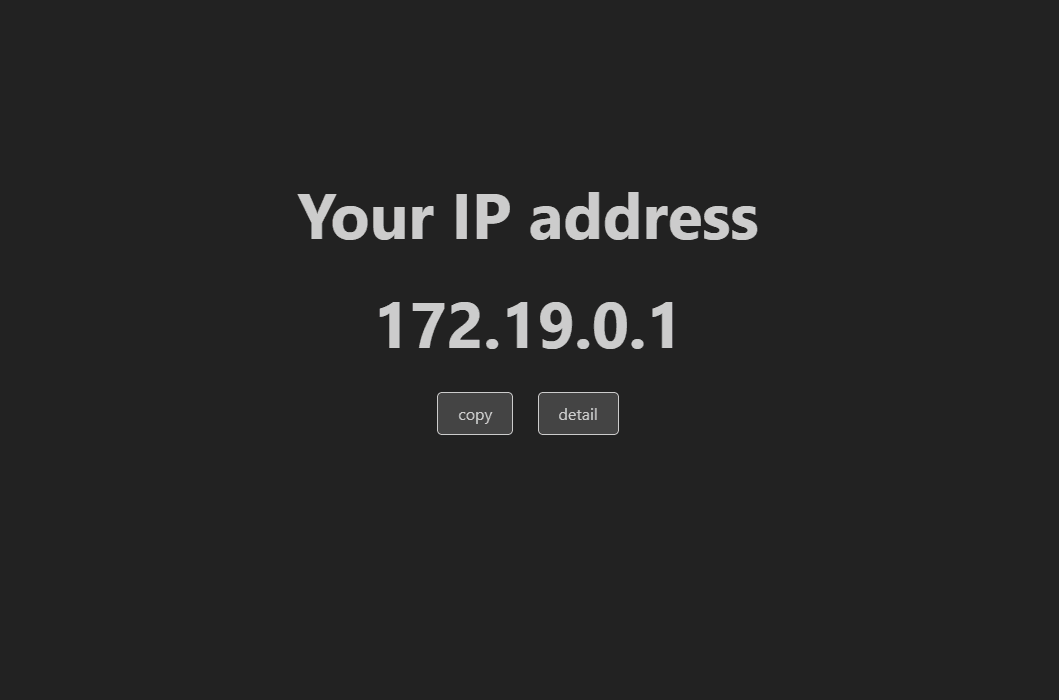

Alternatively, open http://ip.traefik.me/ in a browser to see a similar web page.

Conclusion of the Local Experiment

This concludes the basic local setup.

On a Real Server?

It's a bit more complicated.

The service auto-discovery using the Docker provider we just used only works if the container is running within the same Docker network. Additionally, you'll need to manage details like access logging, middleware for controlling dashboard access, file provider configurations, and automatic HTTPS certificate issuance.

We'll go through them step by step, so make sure to follow along!

From the Outside to the Server!

First, your server should have both the operating system and Docker installed.

Let's assume that SSH and basic configurations have already been completed.

While you can use any DNS provider, this guide will use Cloudflare as an example.

If your domain is example.com, add the following records:

To find [YOUR SERVER IP], you can use the following commands in the server terminal:

curl ifconfig.me
# or
curl ip.minpeter.uk -L

Also, to allow traffic through Traefik, you need to open ports 80 and 443 on your router or firewall. (Do this on your own)

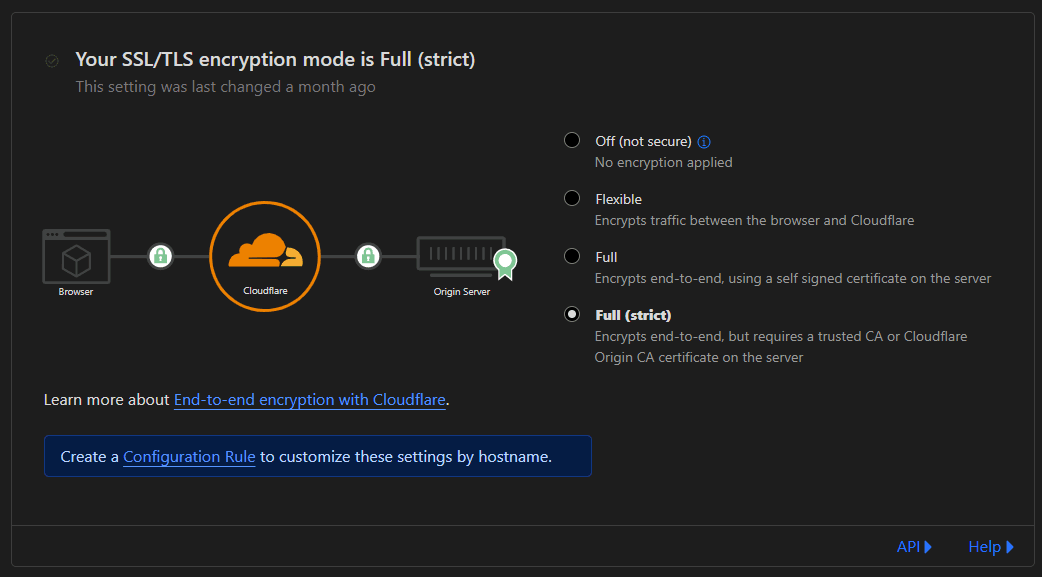

If you’re using Cloudflare, make sure to enable Proxied and set Your SSL/TLS encryption mode is Full (strict) to Full (strict).

Well, you could just use Flexible and skip the HTTPS certificate setup. LOL

Lastly, we’ll use an HTTP challenge for certificate issuance later. Configure a page rule for this.

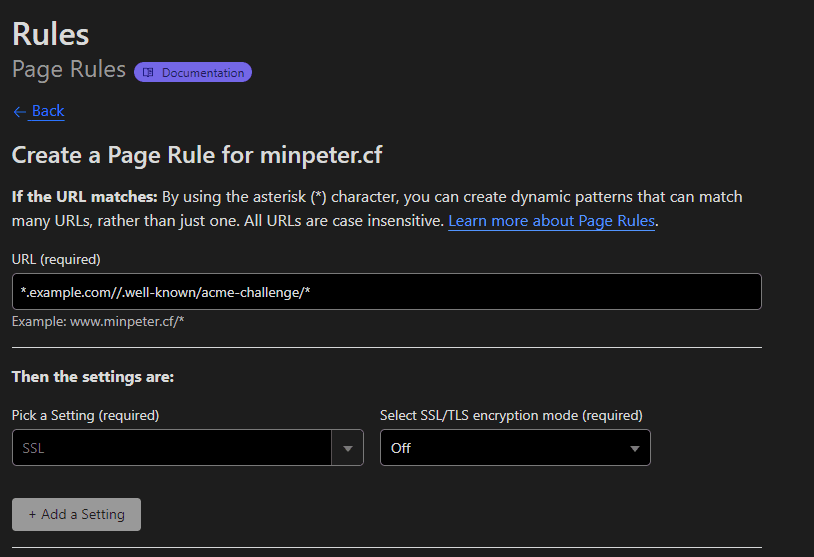

Go to Rules > Page Rules > Create Page Rule, and set it as follows:

• URL: *.example.com/.well-known/acme-challenge/*
• Setting: SSL > Off

Now, the server is reasonably secure for external access on ports 80 and 443, and the certificate setup for later steps is also complete.

Of course, if you use a DNS provider other than Cloudflare, just set up the records. (But it won’t protect you from attacks)

From Zero to Restricting Access to Specific Services

Connect to the server using SSH or your preferred method.

Create a traefik folder and generate a docker-compose.yaml file.

Replace minpeter.uk with your domain name in the configuration below.

version: "3.8"
services:
  traefik:
    image: traefik:v2.9
    container_name: traefik
    restart: unless-stopped
    labels:
      - traefik.enable=true
      - traefik.http.routers.traefik.rule=Host(`traefik.minpeter.uk`) && PathPrefix(`/api`, `/dashboard`)
      - traefik.http.routers.traefik.entrypoints=websecure
      - traefik.http.routers.traefik.tls.certresolver=myresolver
      - traefik.http.routers.traefik.service=api@internal
    ports:
      - 80:80
      - 443:443
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - ./traefik.yaml:/etc/traefik/traefik.yaml
      - ./external_services:/external_services
      - traefik-letsencrypt:/letsencrypt
    networks: [traefik]

  iplogger:
    image: minpeter/iplogger
    restart: unless-stopped
    container_name: iplogger-service
    labels:
      - traefik.enable=true
      - traefik.http.routers.iplogger.rule=Host(`ip.minpeter.uk`)
      - traefik.http.routers.iplogger.entrypoints=websecure
      - traefik.http.routers.iplogger.tls.certresolver=myresolver
    networks: [traefik]

networks:
  traefik:
    external: true

volumes:
  traefik-letsencrypt:

This configuration introduces several new elements. Notably, HTTPS setup and certificate issuance are included, and the WEB UI previously accessible via port 8080 is now accessible through traefik.example.com.

# Labels section in the traefik service within docker-compose.yaml
- traefik.http.routers.traefik.rule=Host(`traefik.minpeter.uk`) && PathPrefix(`/api`, `/dashboard`)
- traefik.http.routers.traefik.service=api@internal

For SSL certificate settings, the following has been added:

version: '3.8'
services:
  traefik:

...

labels:
..
    - traefik.http.routers.traefik.entrypoints=websecure
    - traefik.http.routers.traefik.tls.certresolver=myresolver

...

volumes:
  traefik-letsencrypt:

Under volumes, three new entries are introduced:

traefik:
  volumes:
	...
	      - ./traefik.yaml:/etc/traefik/traefik.yaml
	      - ./external_services:/external_services
	      - traefik-letsencrypt:/letsencrypt

...

volumes:
  traefik-letsencrypt:

• traefik.yaml: Replaces command arguments for static settings.
• external_services folder: Pre-connected for the file provider.
• traefik-letsencrypt volume: Stores issued certificates.

Network-related additions are as follows:

# For each service
networks: [traefik]

# Declaring the use of an external Docker network
networks:
  traefik:
    external: true

Create the traefik.yaml file and the external_services folder. Then configure traefik.yaml:

accessLog: {}

api:
  insecure: false
  dashboard: true

providers:
  docker:
    network: traefik
    exposedByDefault: false
  file:
    directory: /external_services
    watch: true

entryPoints:
  web:
    address: :80
    http:
      redirections:
        entryPoint:
          to: websecure
          scheme: https
  websecure:
    address: :443
    forwardedHeaders:
      trustedIPs:
        - 173.245.48.0/20
        - 103.21.244.0/22
        - 103.22.200.0/22
        - 103.31.4.0/22
        - 141.101.64.0/18
        - 108.162.192.0/18
        - 190.93.240.0/20
        - 188.114.96.0/20
        - 197.234.240.0/22
        - 198.41.128.0/17
        - 162.158.0.0/15
        - 104.16.0.0/13
        - 104.24.0.0/14
        - 172.64.0.0/13
        - 131.0.72.0/22
        - 2400:cb00::/32
        - 2606:4700::/32
        - 2803:f800::/32
        - 2405:b500::/32
        - 2405:8100::/32
        - 2a06:98c0::/29
        - 2c0f:f248::/32

certificatesResolvers:
  myresolver:
    acme:
      email: kali2005611@gmail.com
      storage: /letsencrypt/acme.json
      httpChallenge:
        entryPoint: web

Make sure to replace the email in myresolver with your own.

Before starting the server, create the traefik network as declared:

docker network create traefik

Start the server:

docker compose up -d

The server will issue certificates automatically, allowing HTTPS access for ip.example.com. The WEB UI will be accessible via traefik.example.com/dashboard/.

Adding Additional Services

Behind the traefik proxy, the iplogger service is operational. Additional services can be added using one of two providers:

1. Docker-based automatic configuration
2. File-based manual configuration

Docker-based Example:

Create a kuma folder and add a docker-compose.yaml file:

version: "3.8"
services:
  uptime-kuma:
    image: louislam/uptime-kuma:latest
    container_name: uptime-kuma
    restart: unless-stopped
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - uptime-kuma:/app/data
    labels:
      - traefik.enable=true
      - traefik.http.services.uptime-kuma.loadbalancer.server.port=3001
      - traefik.http.routers.uptime-kuma.entrypoints=websecure
      - traefik.http.routers.uptime-kuma.tls.certresolver=myresolver
      - traefik.http.routers.uptime-kuma.rule=Host(`uptime.minpeter.uk`)
    networks:
      - traefik

networks:
  traefik:
    external: true

volumes:
  uptime-kuma:
    driver: local

This pattern remains consistent across services. Write the compose file, include traefik-specific labels, and set the networks option to traefik.

File-based Example:

In cases where the service runs locally on the same host as traefik, you can route traffic accordingly. To allow the traefik container to access the host’s localhost, modify traefik/docker-compose.yaml as follows:

traefik:
...

	extra_hosts:
	  - host.docker.internal:host-gateway

Create a service definition file within the external_services folder:

[http.routers]
  [http.routers.iplogger]
    entryPoints = ["websecure"]
    rule = "Host(`ip.minpeter.uk`)"
    service = "iplogger-ext-srv"
    [http.routers.iplogger.tls]
      certResolver = "myresolver"
[[http.services.iplogger-ext-srv.loadBalancer.servers]]
  url = "http://host.docker.internal:10000"

Traffic to ip.example.com will now route to localhost:10000.

Adding Basic Authentication

Modify the traefik service labels and volumes:

# labels
- traefik.http.routers.traefik.middlewares=traefik-auth
- traefik.http.middlewares.traefik-auth.basicauth.usersfile=/usersfile

# volume
- ./usersfile:/usersfile

Create a usersfile using:

echo "<username>:<htpassword>" >> traefik/usersfile

Replace <username> and <htpassword> with your desired username and hashed password. Use an online generator or the htpasswd command to generate the password hash. Once configured, authentication will protect access to the traefik dashboard.

Done!
