Running GNS3 with Docker (en)

Quickly set up GNS3 for network experiments

Introduction

This tutorial demonstrates how to run GNS3 in a Linux VM environment on an OrbStack-enabled MacBook using Docker and execute a simple topology.

The benefits of this setup are as follows:

  1. Easy installation.
  2. Isolation from the system reduces potential issues.

This guide does not cover GNS3 Desktop configuration or packet capture but focuses on testing routing through Alpine Docker containers with routers and switches.

Additionally, this tutorial relies on the following project:

https://github.com/jsimonetti/docker-gns3-server

Setting up an x86 Docker environment on MacBook

Through several tests, I discovered that specific networking functions of the GNS3 server do not work correctly in an ARM64 Docker environment.

To ensure a proper experiment, we will simulate an x86 environment using a virtual machine with Rosetta.

If you are using Windows or an x86-based environment with Docker installed, you can skip this section.

Download the necessary files from https://orbstack.dev/download or install OrbStack with brew install orbstack.

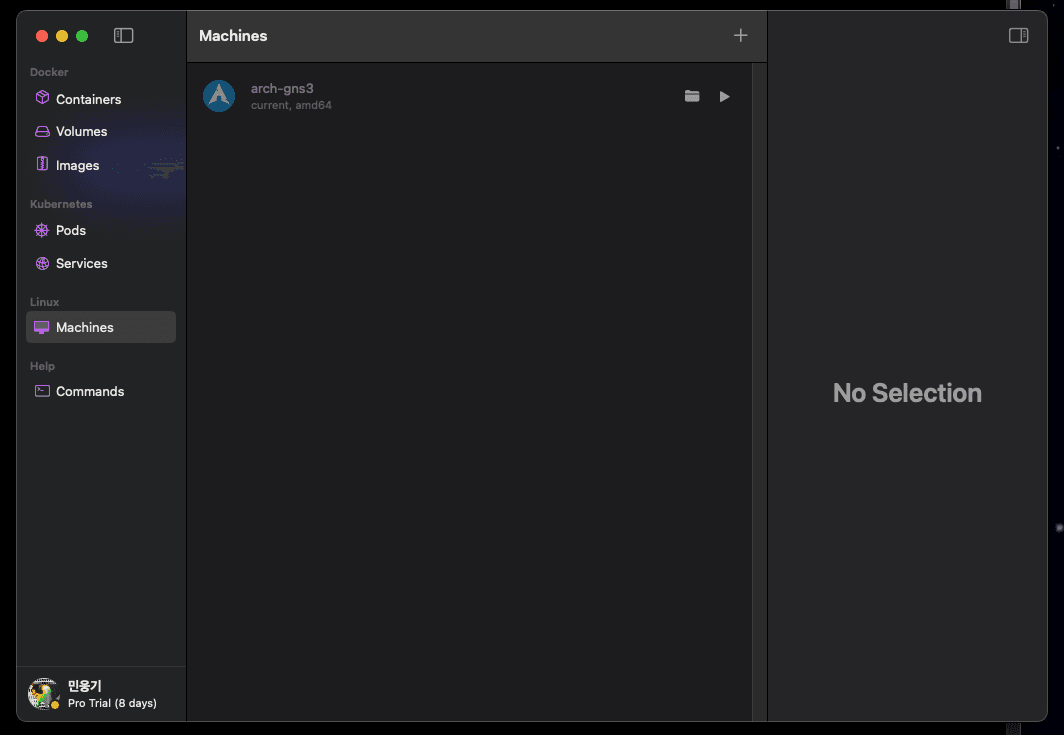

After installation, launch OrbStack and navigate to the Machines tab.

Untitled

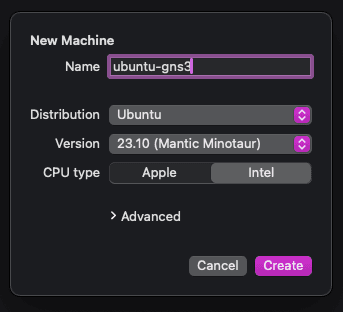

Create a VM with the following settings: Ubuntu and CPU type: Intel.

Untitled

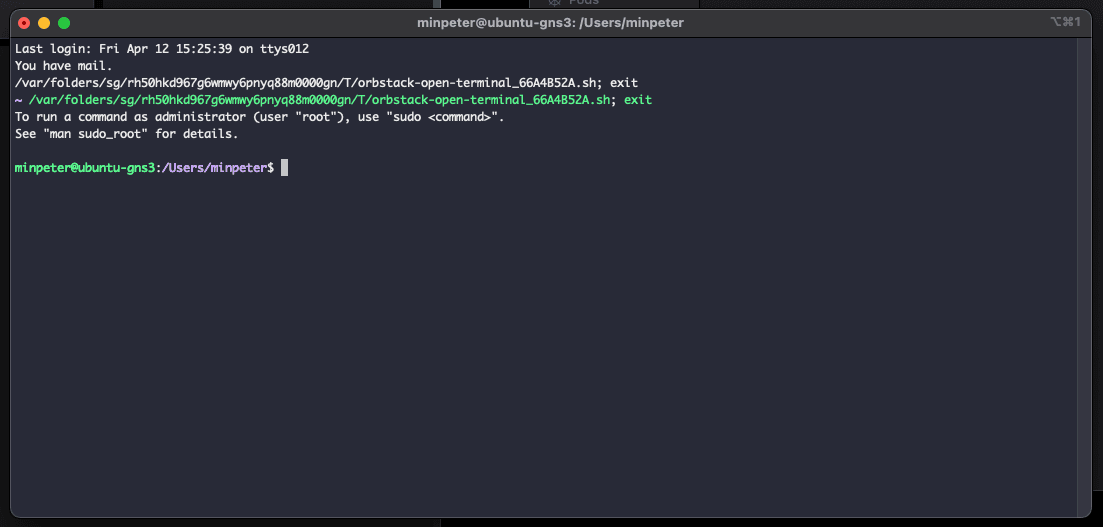

Double-click the VM to open its terminal.

Untitled

Enter the following commands to set up Docker:

cd ~
curl -L get.docker.com | sh

Run the commands below to confirm Docker installation:

sudo docker version
sudo docker ps

Running the GNS3 server on Docker

Continuing from the previously configured x86 environment with Docker installed:

Create a folder to store GNS3 data using the following command:

mkdir gns3-data

Then run the GNS3 server with the following command:

sudo docker run \
   --rm -d \
   --name gns3 \
   --net=host --privileged \
   -e BRIDGE_ADDRESS=172.21.1.1/24 \
   -v ./gns3-data:/data \
   jsimonetti/gns3-server:latest

Access the server via http://ubuntu-gns3.orb.local:3080/ on your MacBook. If not using OrbStack, use http://localhost:3080 or the VM’s IP with port 3080.

*The address may vary if the VM’s name is different. You can verify active addresses at https://orb.local/.

Untitled

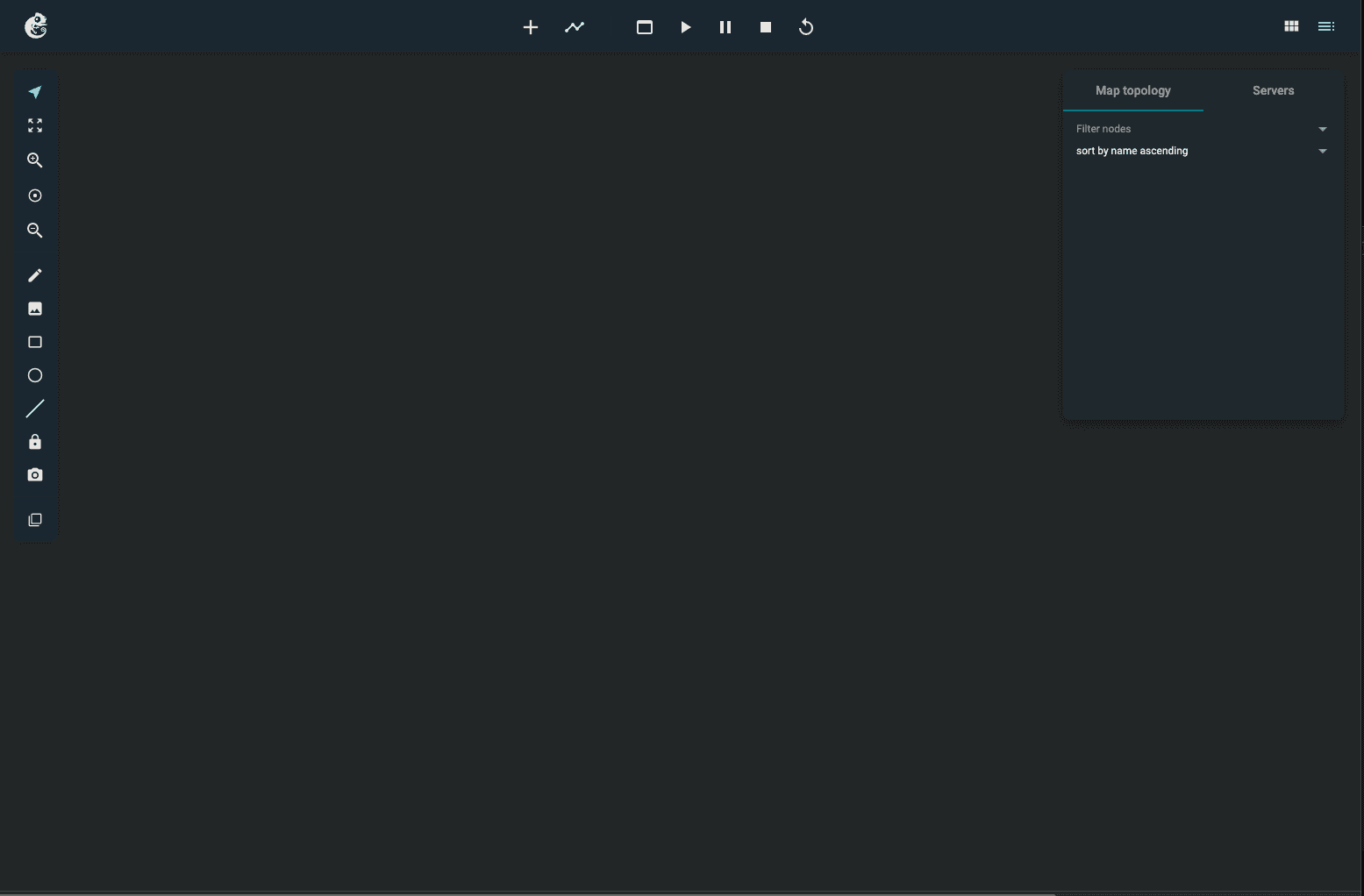

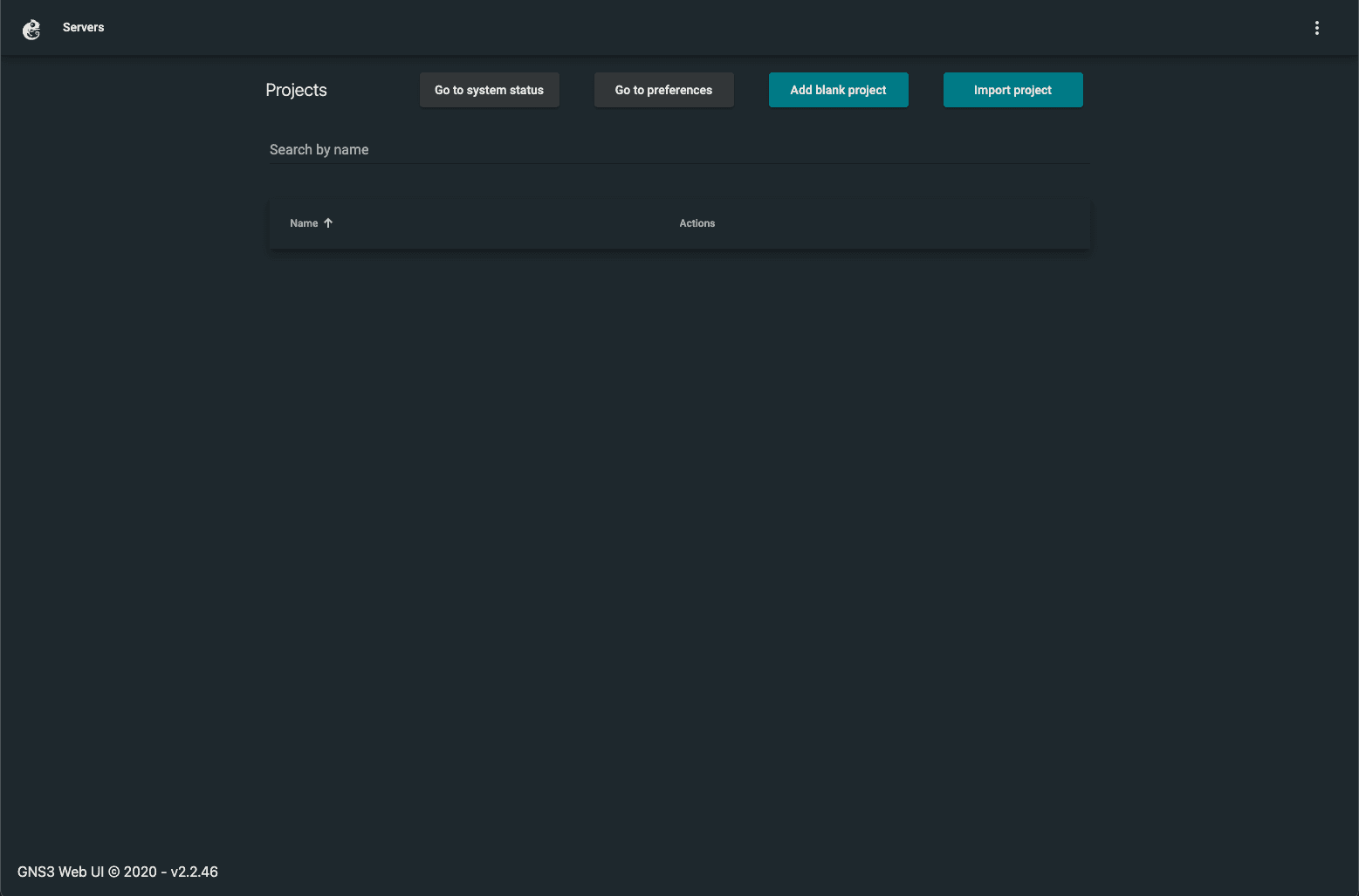

You will now be able to access the web UI.

A simple GNS3 experiment

Within GNS3, we will create two Docker containers, assign IPs, and test communication via a switch.

Click Add blank project and input any name.

Untitled

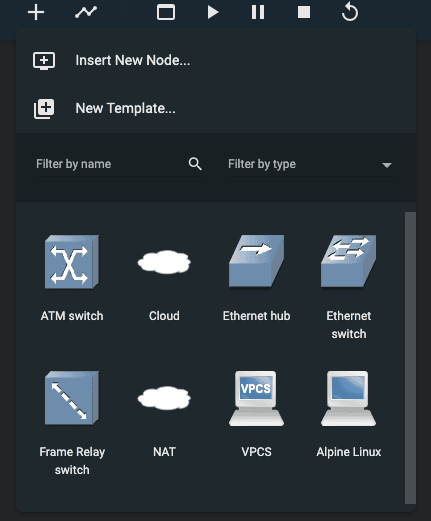

Click the + button at the top center and select New Template....

Untitled

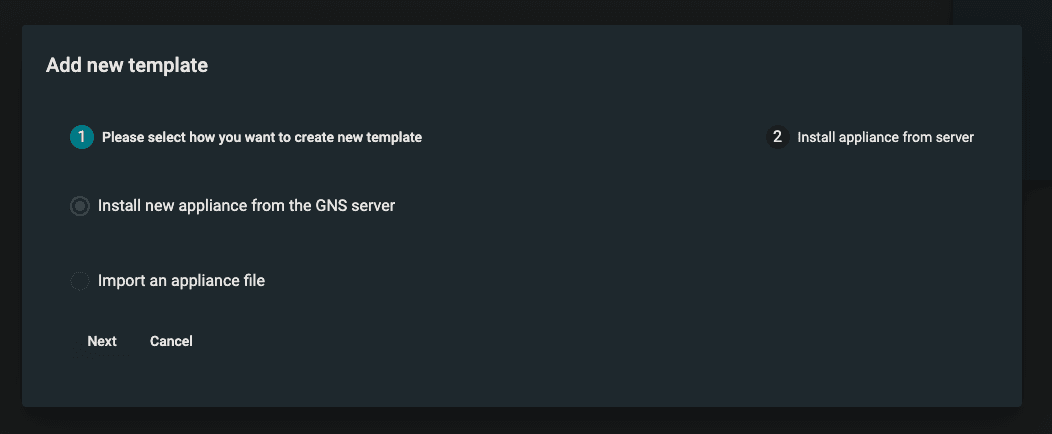

Click "Next" and search for "alpine" in the filter. From the list, locate the item of Emulator type "Docker" and click the download icon in its Actions column.

Untitled

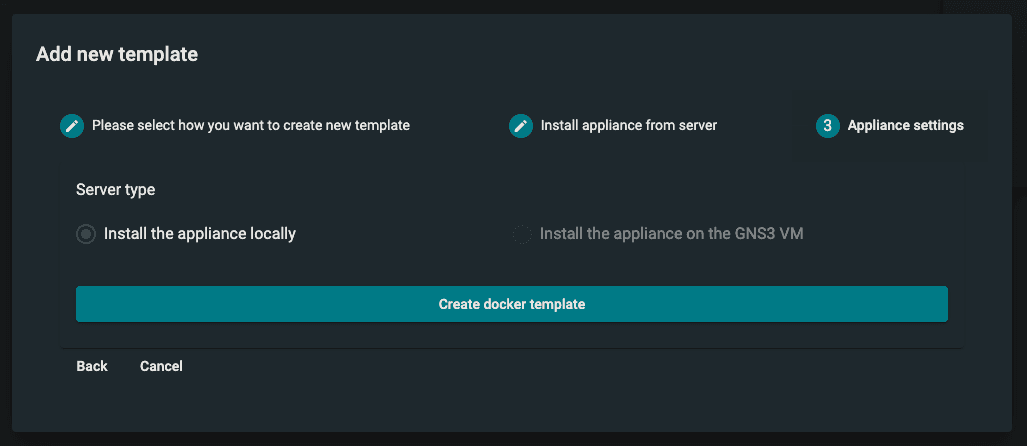

Complete the setup by clicking Create docker template.

Untitled

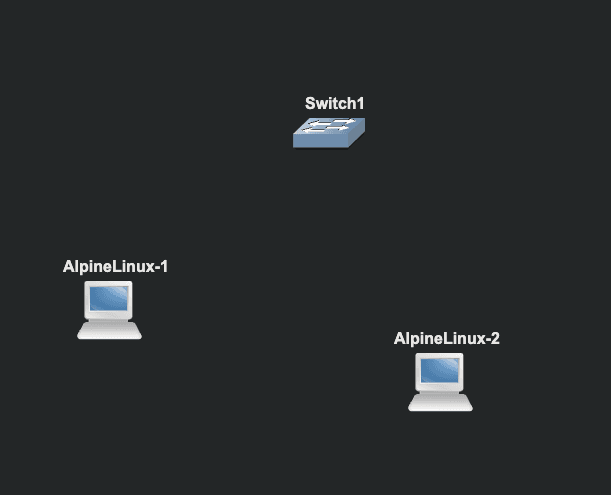

Drag two Alpine Linux instances and one Ethernet switch onto the workspace.

Untitled

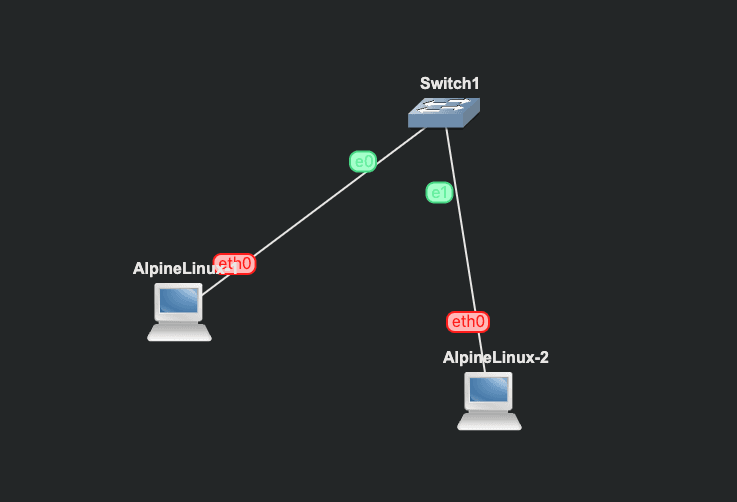

Connect them using the line tool next to the + button.

Untitled

Right-click each Alpine Linux machine, select Configure, then click Edit network configuration. Paste the following content, ensuring the addresses differ for each container:

# Alpine Linux 1
auto eth0
iface eth0 inet static
	address 192.168.0.1
	netmask 255.255.255.0
# Alpine Linux 2
auto eth0
iface eth0 inet static
	address 192.168.0.2
	netmask 255.255.255.0

Click the start button to run the configuration.

Untitled

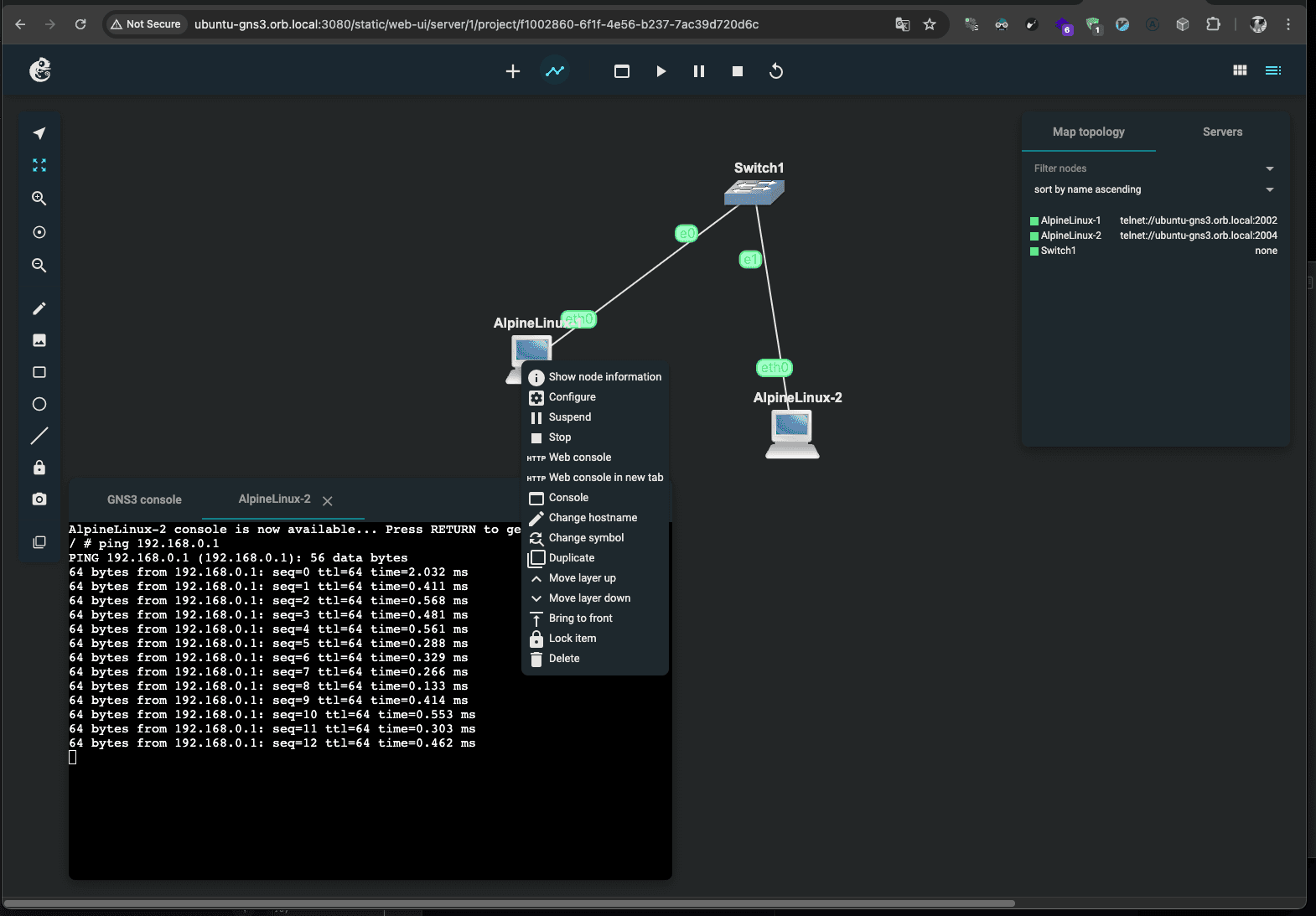

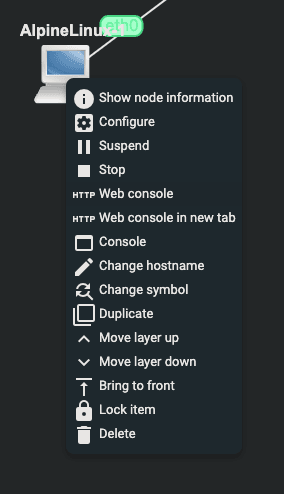

Right-click each node and select Web console to open a terminal for Alpine 1 and Alpine 2.

Untitled

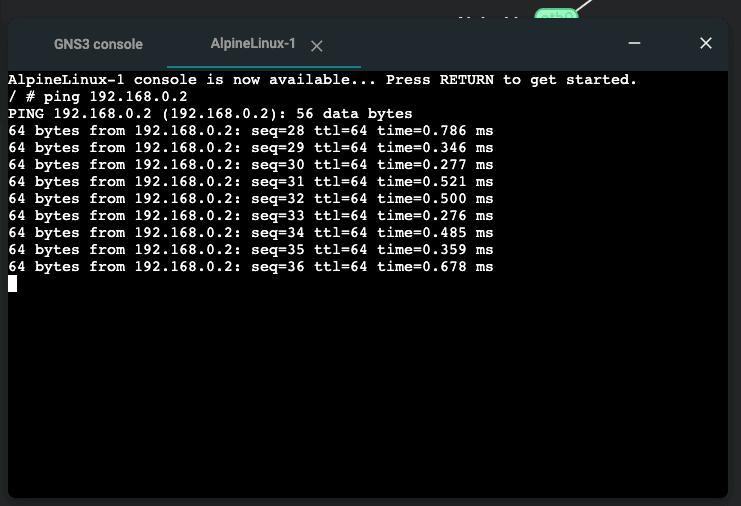

Ping from Alpine 1 to 192.168.0.2 and from Alpine 2 to 192.168.0.1 to verify communication.

It works! :)

Untitled

Although GNS3 Desktop and EVE-ng are excellent, this setup is lightweight and sufficient for experimenting with Linux routing tables.
